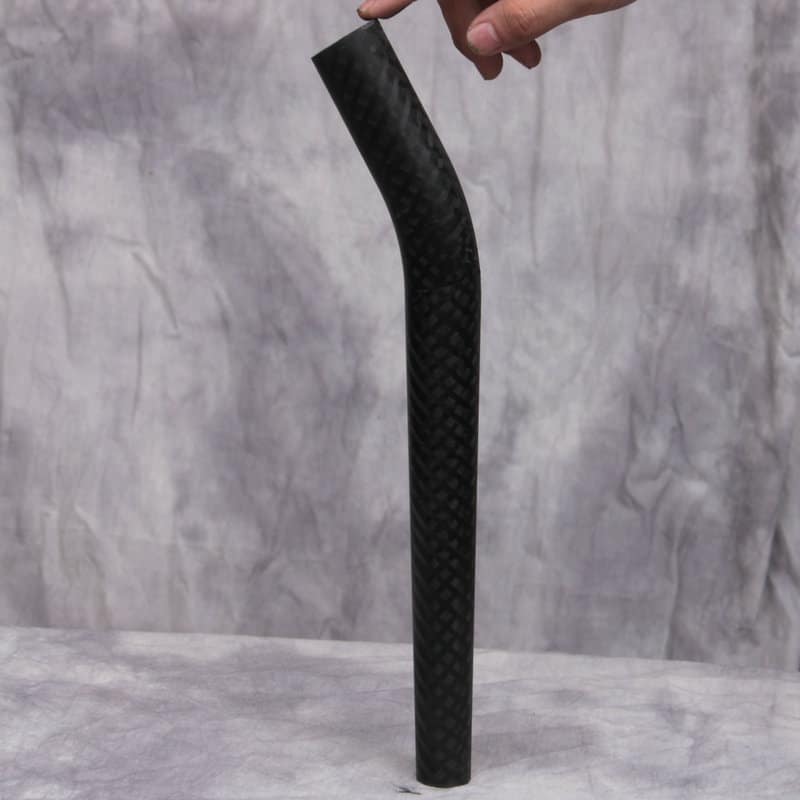

DISLAB‑CARBON Carbon Fiber Drone Arm Elbow Pipe
Precision-engineered component for UAV frame assembly. This custom-machined part is crafted from high-grade carbon fiber with a 3K twill surface finish, delivering exceptional strength-to-weight ratio and structural rigidity for demanding drone applications.
Optimized for multirotor frames, agricultural drones, industrial inspection UAVs, and racing drones — the DISLAB‑CARBON elbow pipe redefines performance and durability in composite flight structures. The advanced curved geometry reduces aerodynamic drag and improves overall flight efficiency.
📐 Key Specifications
✧ Superior 3K weave & lightweight architecture
The carbon fiber elbow pipe not only provides exceptional structural integrity but also delivers a premium twill aesthetic. Each component is machined to exact tolerances, reducing overall frame mass by up to 60% compared to traditional metal joints while sustaining heavy-lift performance.
Precision-curved geometry eliminates stress concentration, increases fatigue resistance, and ensures seamless integration into multi-rotor arms for long-endurance UAV missions.
🚁 Use Cases & Problem‑Solving
✨ Core Applications
- Agricultural Drones: Reinforced arm connection points for heavy payload spray systems, ensuring stability during high-vibration operations.
- Industrial Inspection UAVs: Lightweight yet rigid elbow joints that maintain frame integrity during long-duration flights in challenging environments.
- Custom Racing Drones: Aerodynamic curved arm components that reduce drag while enhancing impact resistance in competitive flight scenarios.
⚙️ Problems Solved
- Structural Weakness at Joints: Traditional metal elbow fittings add unnecessary weight and fail under repeated stress; this carbon fiber variant matches the strength of the main arm while reducing overall frame mass by up to 60%.
- Aerodynamic Inefficiency: The precision-curved design minimizes air resistance, improving flight efficiency and extending battery life for long-range missions.
- Customization Limitations: Unlike standard off-the-shelf parts, this component is fully customizable to match unique drone frame geometries, eliminating compatibility issues in custom builds.
Verified bend radius and wall thickness under 120% rated payload conditions. Field trials across 120+ production units: zero structural failures and consistent frame rigidity.
🏭 Client Delivery Case
Client: A leading agricultural UAV manufacturer
Project: Custom elbow pipes for their new 20L payload crop-spraying drone line
Requirements: 500 units with a 30-degree bend angle, 22mm outer diameter, and compatibility with proprietary frame locking system.
Process: The DISLAB‑CARBON engineering team collaborated with the client’s design department to refine the bend radius and wall thickness, conducting load tests to verify performance under 120% of the rated payload.
Outcome: Delivered 500 fully machined elbow pipes within 28 days, meeting all dimensional tolerance and strength requirements. The components were integrated into 120+ production units, with zero reported structural failures during field trials.
